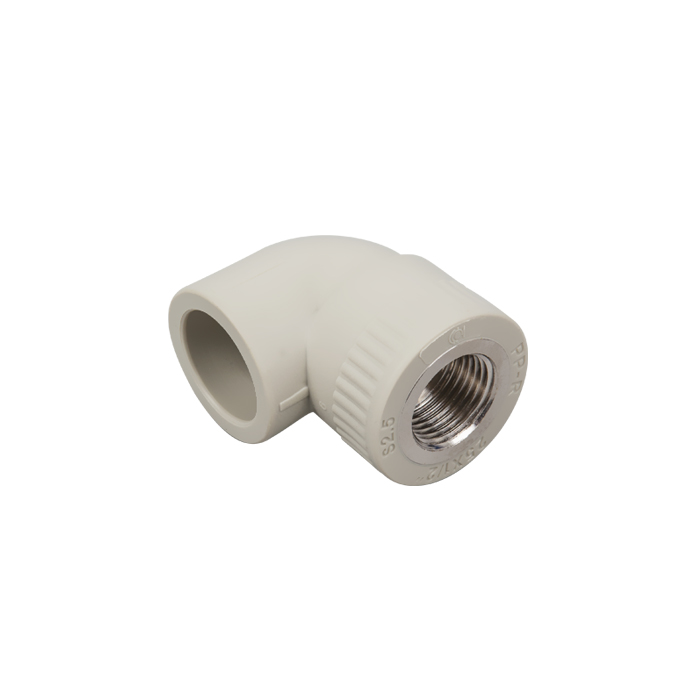

PPR pipe fitting female threaded elbow

PPR pipe fitting female threaded elbow

Material: PP resin, HYOSUNG R200P from Korea and 58-3 brass insert
Pressure Rating: 2.5MPa
Standard: DIN8077-8078
Production temperature: -40 - +95C
Certification: ISO9001, ISO14001
Color: Green, White, Grey etc

PPR pipe fitting female threaded elbow parameters

cold or hot water supply, heating system including flooring heating, wall heating and radiant, central air conditioning and industrial liquids transportation.


High temperature resistance: the maximum sustained working temperature is up to 70 degrees, the maximum transient temperature is up to 95 degrees
Heat preservation: low thermal conductivity result in preserving heat
Non-toxic: no heavy metal additives, would not be covered with dirt or contaminated by bacterium
Lower installation costs: light weight and ease of installation can reduce installation costs
Higher flow capacity: smooth interior walls result in low pressure loss and high volume


Packing& Delivery
1.Package: PE bags inside and carton outside
2. Delivery: Shipped in 10 days after shipment
3. Payment: 30% T/T Deposit, Balanced against the B/L Copy


Our Services

1.We have own factory with competitive price and good quality.
2.Our product is accepted by all over the world, are very popular in many countries, just as Philippines, Russia , Malaysia, , South Africa, Brazil, , UAE, Saudi Arabia, etc.
3.We have own import and export right.
4. Rich experience & best price.


Item No. Specification(mm) Packaging (pcs / ctn)
YJ6021/B 20x1/2" 210
YJ6022/B 25x1/2" 180
YJ6023/B 25x3/4" 150
YJ6024/B 32x1/2" 90
YJ6025/B 32x3/4" 90
YJ6026/B 32x1" 72
